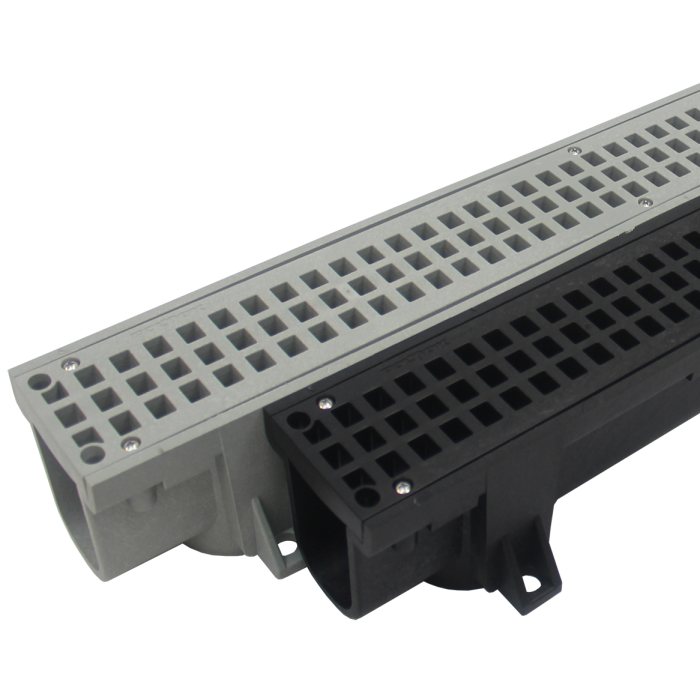

Polylok Skinny Channel & Trench Drain
SKU
prod-393
The NEW Polylok 4 foot skinny trench drain offers many of the same features that the Polylok 4 foot heavy duty trench drain does but in a slim, compact design!
- Grates are ADA compliant
- Grates are reversible from a flat side to a 1/8" convex side
- Trench drain & grate come in 48" (4 feet) sections that can be cut down to 12", 24" & 36"
- Lock tab feature for proper alignment and stability
- Two screws are used to interlock ends together
- All outlet ports accept 2" SCH 40 pipe
- Optional open end caps are available
- Optional closed end caps are also available
- Both end caps will fit either end of the trench drain
- Outside holes accept rebar for fast positioning
- Grate is fastened to trench drain base with provided screws
- Cut lines are indicated at every foot (12", 24" & 36")
- Cut ends attach with lock tab feature and two screws
- NOTE: Traffic speed not to exceed 20 mph. Not recommended for forklift traffic.
